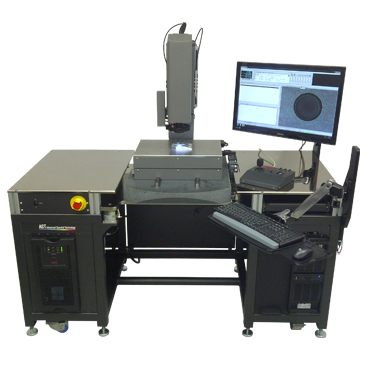

• Meant as an aid to find defects either visually or thermo-graphically with the MWIR band (3-5 microns)



• Thermo graphic microscope to find thermally identifiable defects



• Applications for Aerospace, medical device, semiconductor and forensic; materials and processes development and analysis



• Magnifications from Macro to 1x, 2.5x, 4x and 5x



• Precision 0.10 micron resolution 200mm travel motorized stage for accurate navigation and metrology



• Stage has 6mm cross-roller, lead-screw/stepper motor construction and can accommodate heavy loads (up to approximately 25 kilos)



• Precision 0.10 micron Z axis 250mm travel motorized column for sample and tooling compatibility and Z axis metrology

• Thermal detection to 20 mK



• Spatial resolution below 10 microns 640 x 512, 20 micron pixel



• InSb FPA on a closed cycle dewar (no LN2 required)



• Self-contained work station with probe platforms on both sides of stage



• System includes various image analysis and enhancement features



• System includes image stitching for large sample, high resolution work



• A host of options and configuration are available and systems can be custom built for your applications
